Quality & reliability
Controlled materials, operating conditions and QC release.
Iraqi manufacturing. International supply.
Bitumen built
for the road ahead.
Controlled production, reliable quality and export-ready delivery from our integrated asphalt and lube-oil plant near Erbil.
Since 2020Operational experience
ISO certifiedQuality, HSE and environment
KARI DIYAR · IRAQ
01CORE PROCESSBitumen distillation

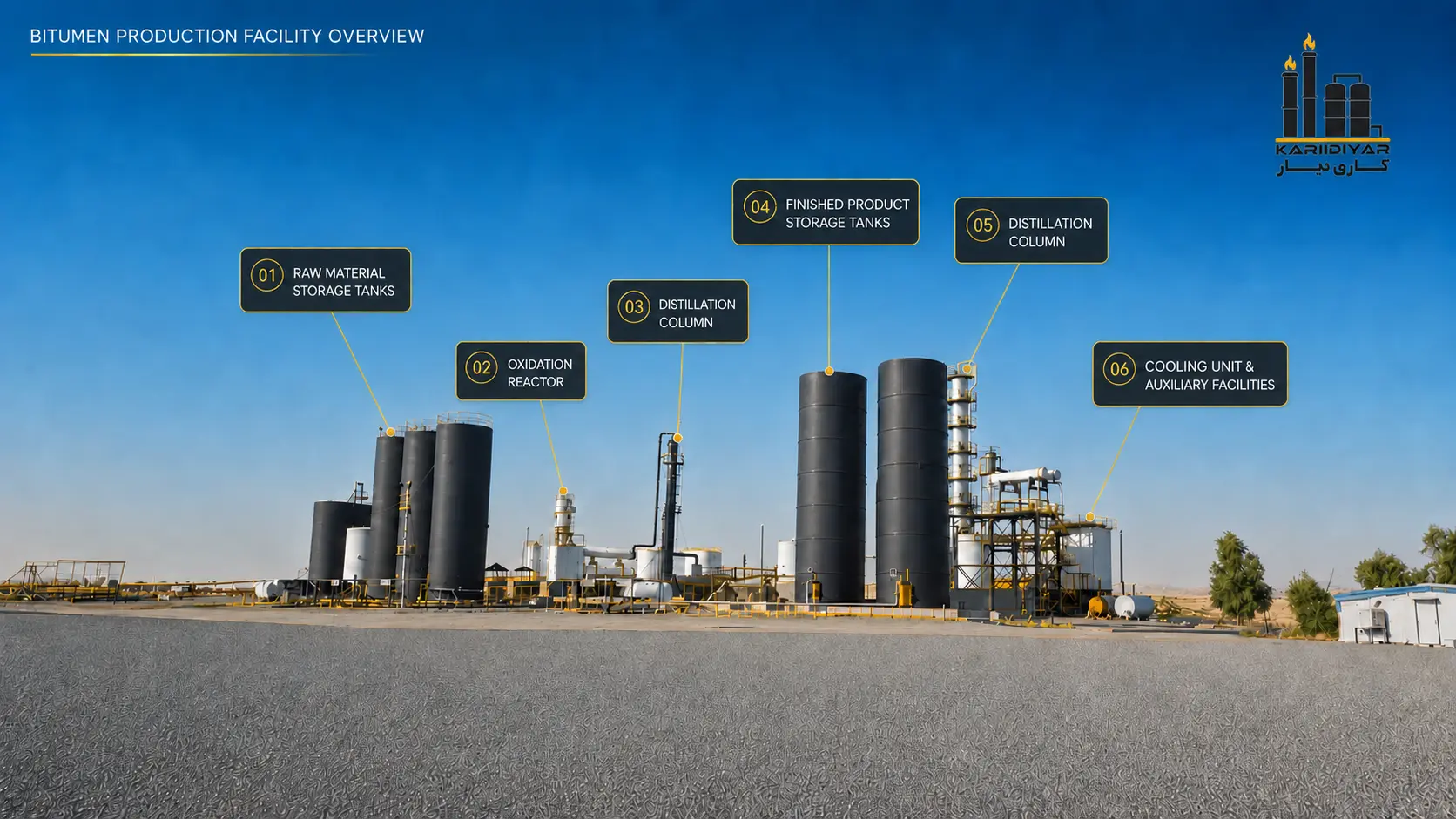

Integrated production and delivery capability
2,000tonnes/dayPublished combined production capacity

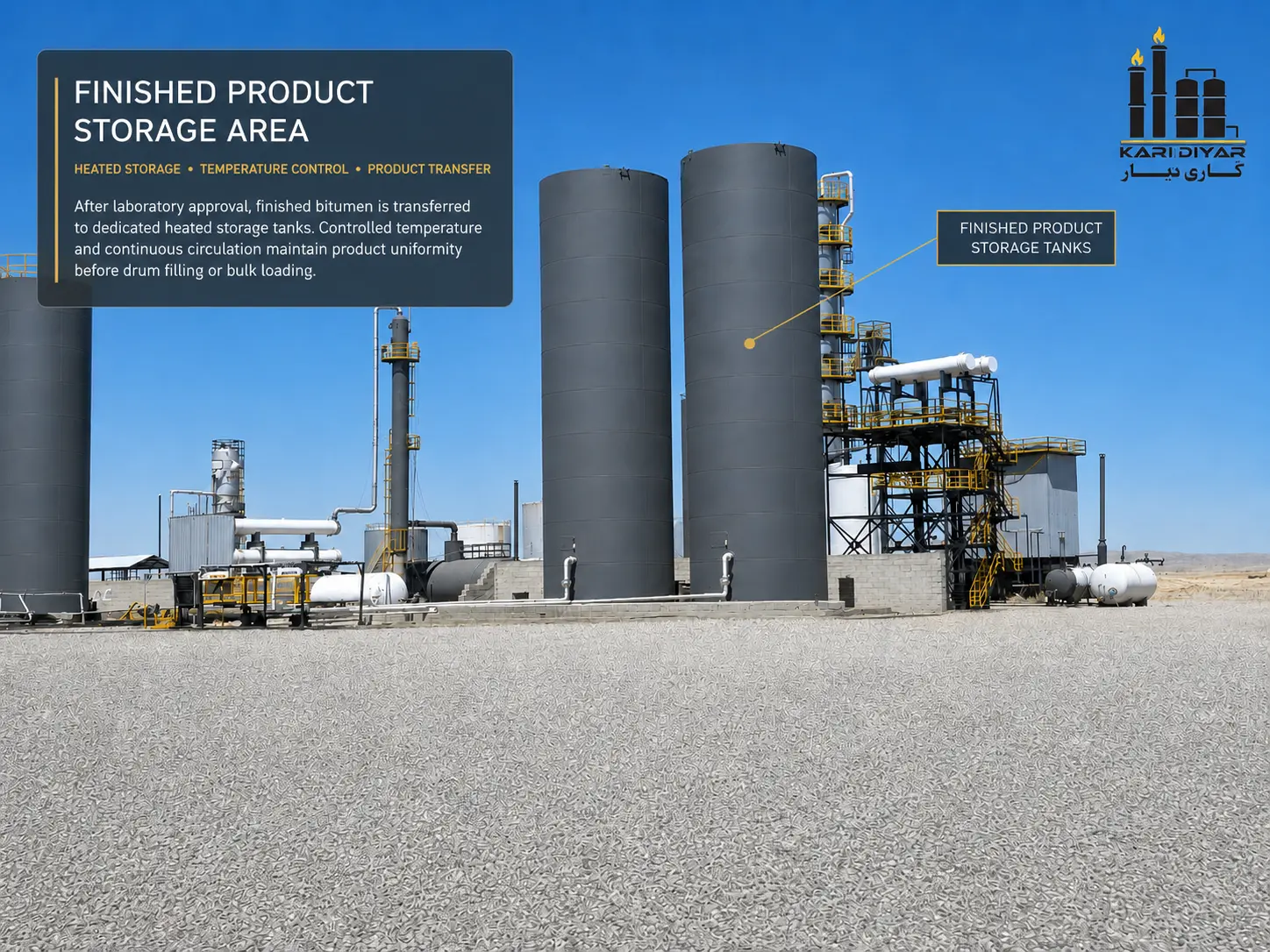

23storage tanksFrom 1,000 to 3,000 m³ each
38,000m³Dedicated asphalt storage
01 / COMPANY
Who we are
A production partner built around control.
KARI DIYAR is an Iraqi manufacturer of asphalt and lube-oil products, operating since 2020 on the Erbil-Kirkuk Road in the Qushtapa / Senara area.
Our integrated plant turns fuel-oil feedstock into paving-grade bitumen, polymer modified bitumen, cutback bitumen, vacuum residue, heavy gas oil and lubricating oils. Production is supported by heating, steam, compressed air, storage, loading, weighing, maintenance and in-house quality control.
Safety & environment
Managed temperatures, trained teams and controlled storage.
Customer service
Contract-specific products, documentation and delivery.
Product portfolio
The right grade for every road.
Our manufacturing range covers paving-grade binders and application-specific asphalt products, supplied to mutually agreed specifications.
01Penetration Grade
40/50
Heavy-duty pavement and high-temperature road applications.
Bulk tanker · Steel drums
02Penetration Grade
50/70
Highways, municipal roads, airports and industrial yards.
Drums · Bulk tanker · Jumbo bags
03Penetration Grade
60/70
Road construction across varied climates and traffic conditions.
Bulk tanker · Steel drums
04Penetration Grade
80/100
Flexible pavement, road construction and waterproofing.
Drums · Bulk · Approved packing
05Polymer Modified
PMB
High-performance paving and demanding climate conditions.
Insulated bulk tanker
06Application Specific
Cutback
Prime coat, maintenance, patching and lower-viscosity work.
Sealed drums · Suitable tanker
07Industrial Asphalt
Oxidized
Industrial, waterproofing and specification-based applications.
Drums · Bags · Heated bulk
08Petroleum Product
Vacuum Residue
Asphalt feedstock and industrial petroleum applications.
Heated tanker · Vessel
Contract-specific supply
Final grade limits, lot testing, packing, net weight, bulk temperature and delivery method are confirmed for each order.
Discuss your requirement →Production capability
From feedstock to finished product.
Every stage is connected by controlled heating, transfer, storage, laboratory release and dispatch systems.
02
PROCESS CONTROL

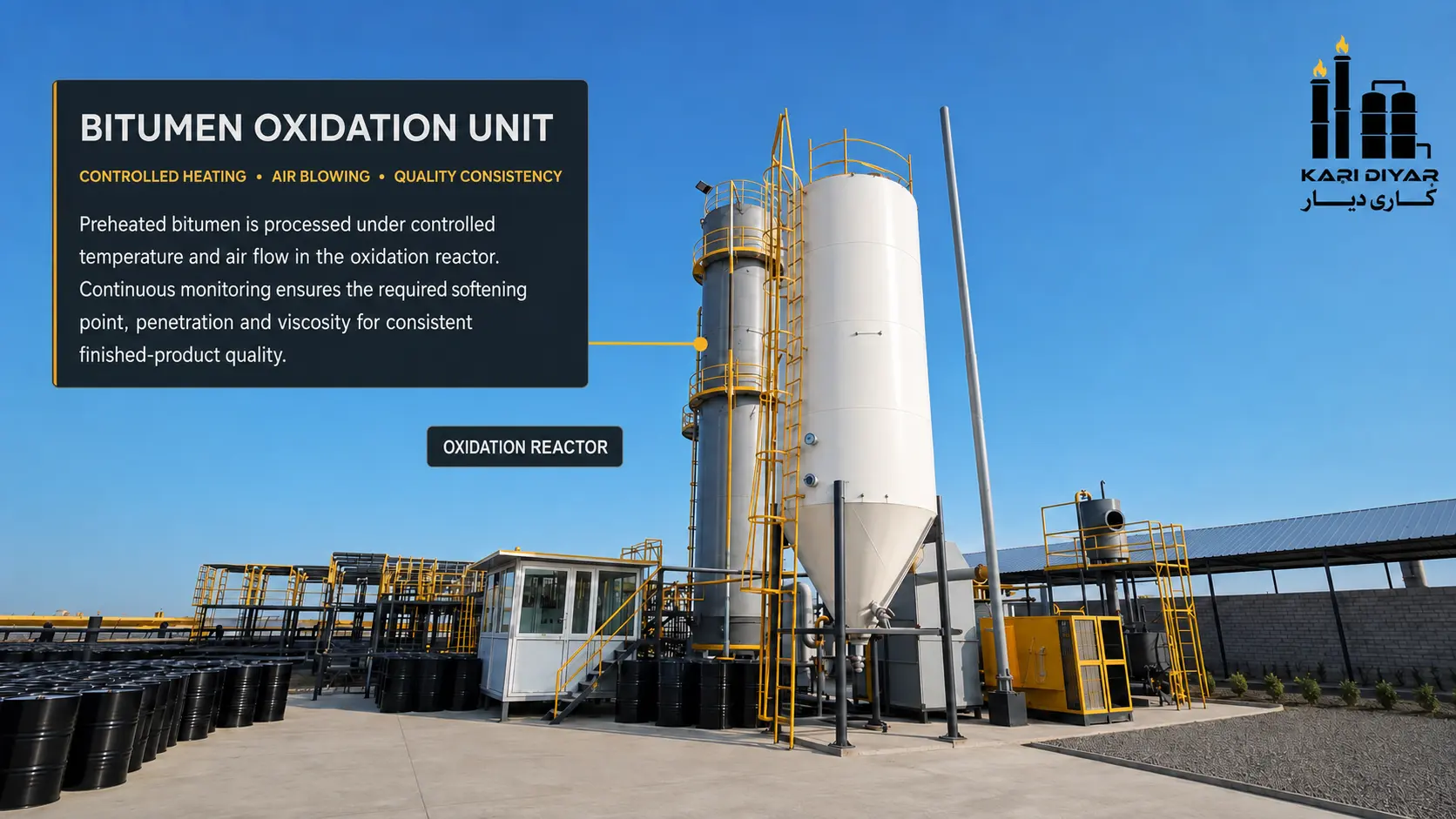

Bitumen oxidation unit
Controlled temperature and airflow help achieve the required penetration, softening point and viscosity.
Feedstock receipt
Controlled receipt, weighing and tank storage.
Heating & transfer
Hydraulic and heat-transfer-oil systems maintain flow.

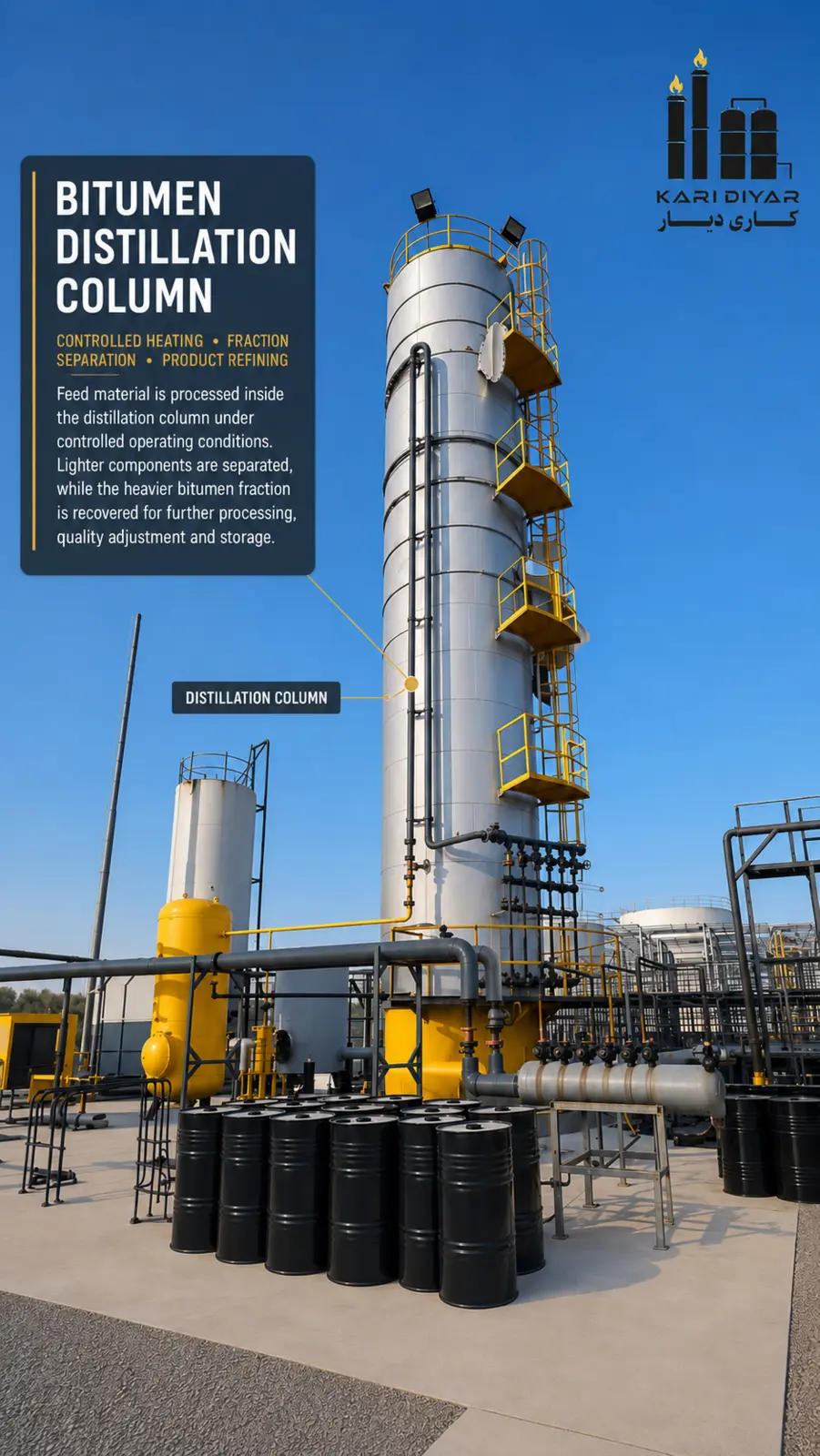

Distillation
Steam-supported separation and residual recovery.
Grade production
Oxidation, blending and specification adjustment.
QC release
Laboratory testing before finished-product release.
Packing & dispatch
Bulk, drums or jumbo bags prepared for delivery.
Published steam capacity of 30 t/h at 8 bar.
Process air and pneumatic support across the plant.
Controlled asphalt truck-loading outlet.
Industrial-water and desalination support.

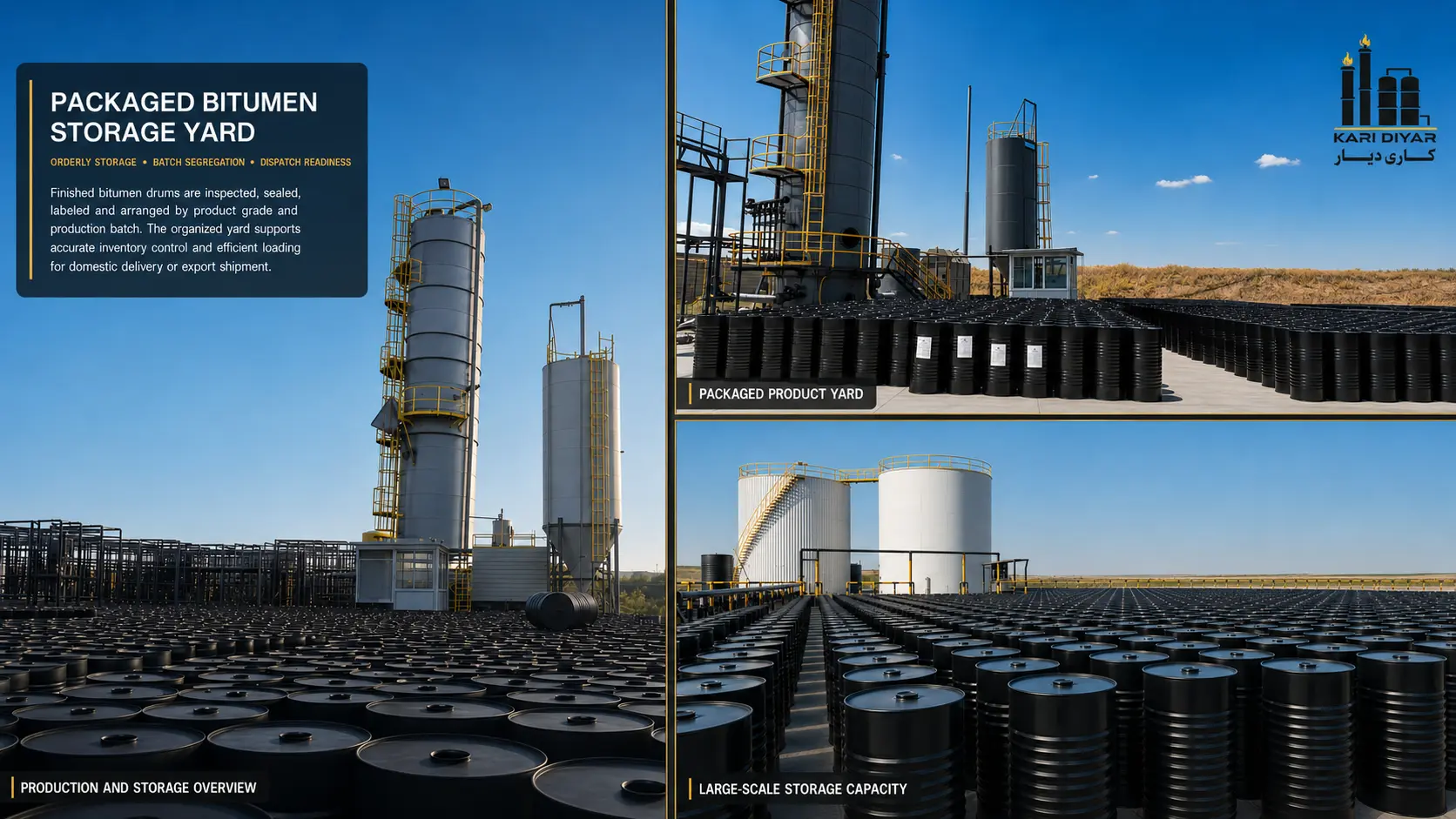

Packing & logistics
Packed, protected and ready to move.
Finished product is inspected, packed and released for domestic delivery or export shipment.

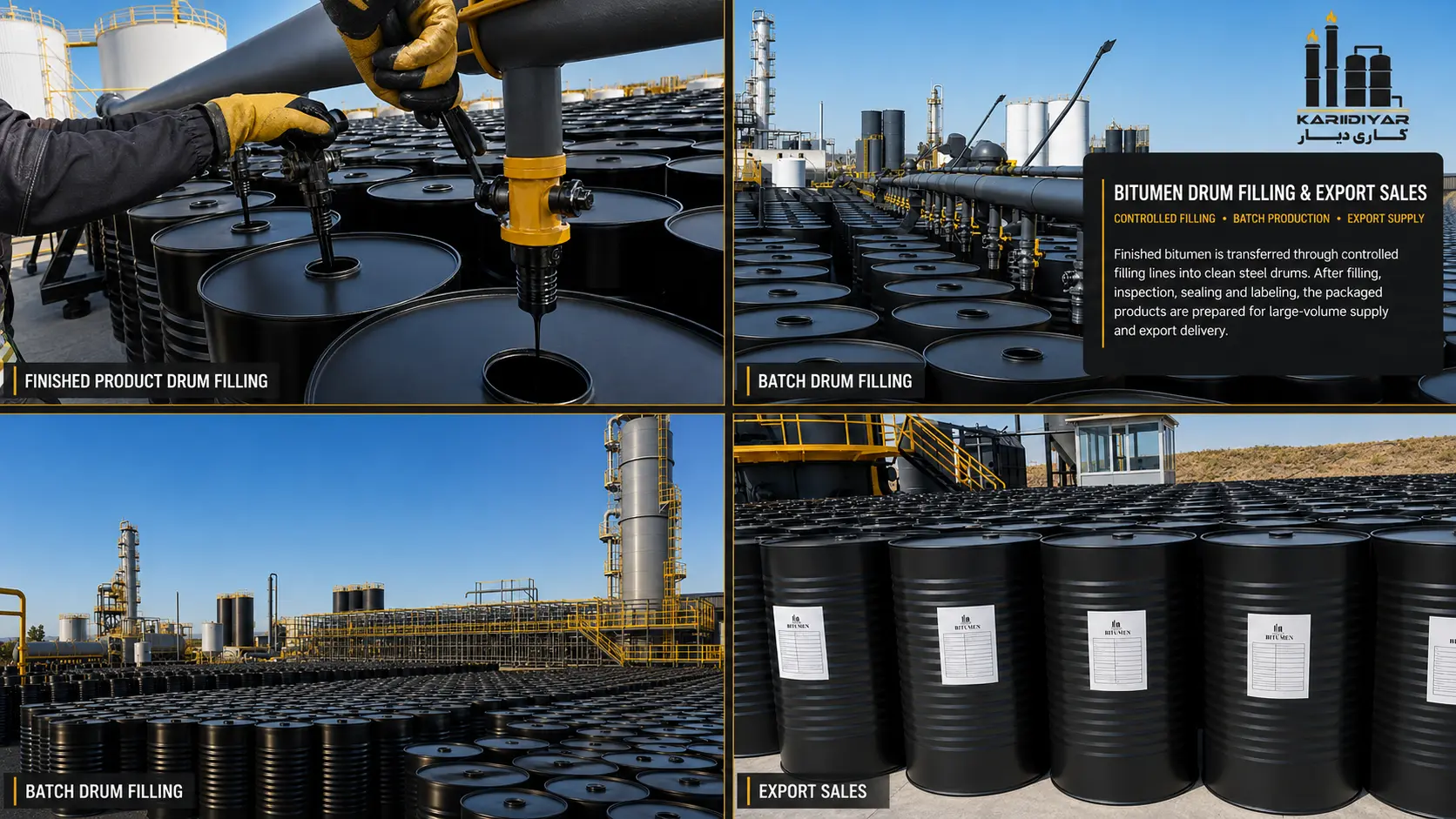

01 / STEEL DRUMS
Controlled drum filling
Filling, inspection, sealing and labeling for secure batch supply.

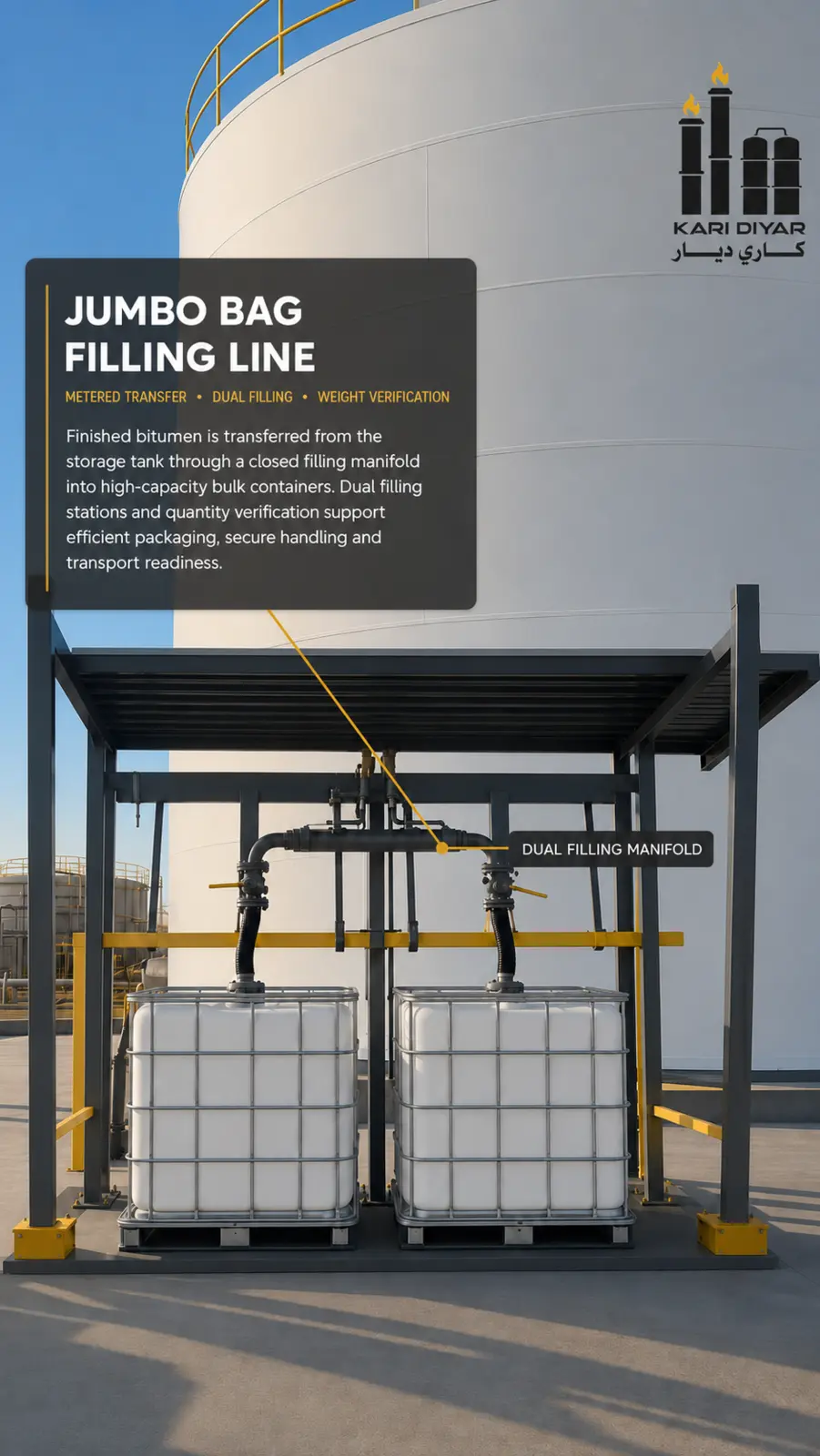

02 / JUMBO BAGS
High-capacity packing
Dual filling and quantity verification for bulk handling.

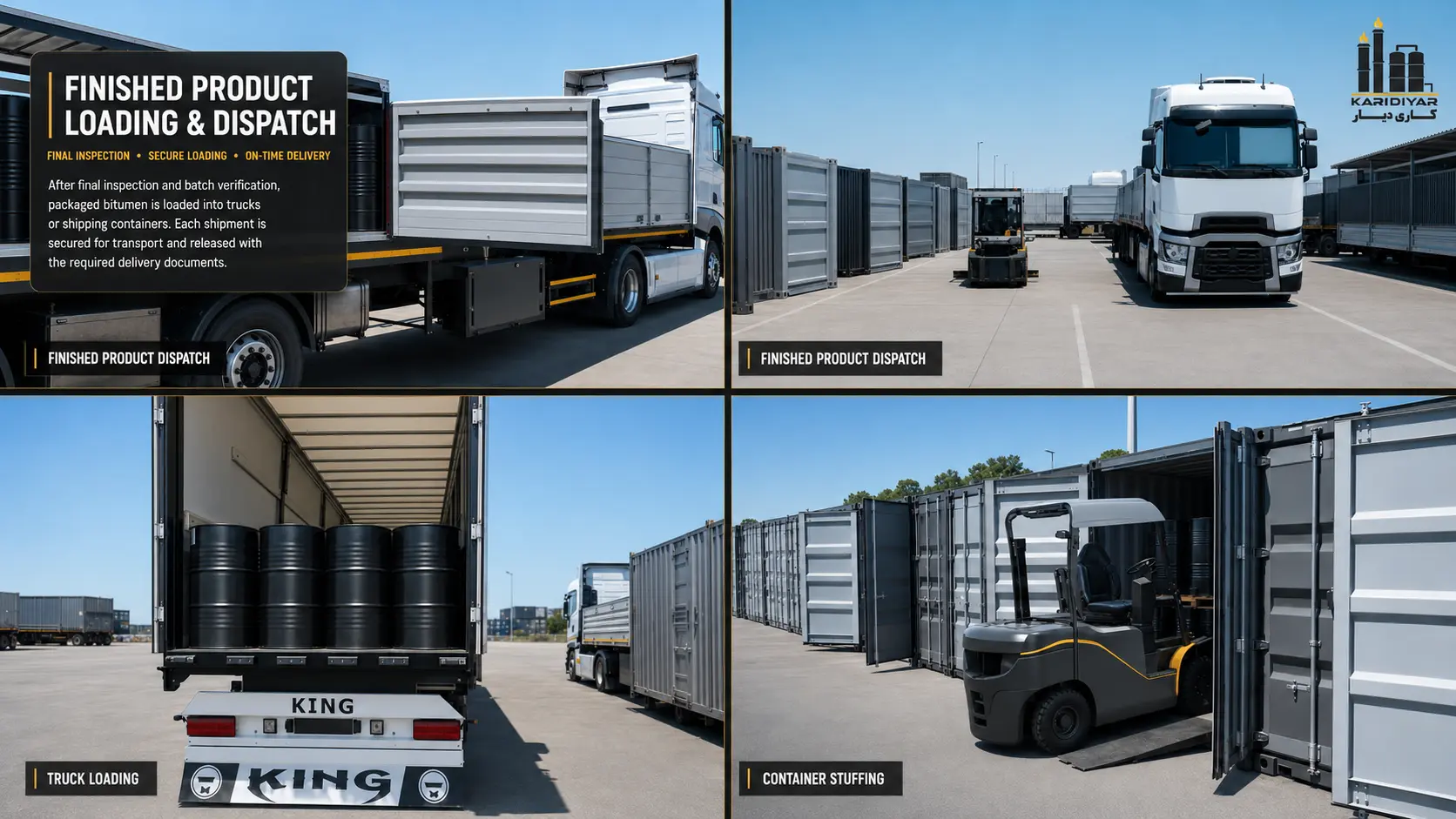

03 / DISPATCH
Truck and container loading
Secure loading, final documentation and coordinated release.
Quality assurance
Tested before release.
Our in-house laboratory monitors raw materials and finished products using internationally referenced test methods.
CERTIFICATE OF ANALYSIS
Bitumen 50/70
Manufacturer's report KD-MTR-50/70-20260715, issued 15 July 2026 for July 2026 production.
PASSReported properties comply with the stated specification limits.
ASTM D946EN 12591Factory QC
| Test item | Method | Specification | Result |
|---|---|---|---|
| Penetration @ 25°C | ASTM D5 / EN 1426 | 50-70 | 62 |
| Softening Point | ASTM D36 / EN 1427 | 48-56°C | 51°C |
| Ductility @ 25°C | ASTM D113 / EN 13398 | ≥100 cm | >120 cm |
| Flash Point | ASTM D92 / EN ISO 2592 | ≥240°C | 265°C |
| Specific Gravity @ 25°C | ASTM D70 / EN 15326 | 1.01-1.06 | 1.035 |
| Solubility | ASTM D2042 / EN 12592 | ≥99.0 wt% | 99.7 wt% |
| Water Content | ASTM D95 / EN 12606-1 | ≤0.2 wt% | <0.05 wt% |
| Loss on Heating | ASTM D6 / EN 12607-1 | ≤0.6 wt% | 0.22 wt% |
| Spot Test | AASHTO T102 | Negative | Pass |
| Penetration Index | Calculated | -1.5 to +0.7 | -0.9 |
| Fraass Breaking Point | EN 12593 | ≤ -8°C | -11°C |
Residual properties after TFOT aging
Retained penetration ratio68% / ≥60%Softening point rise6.2°C / ≤10°CDuctility after TFOT72 cm / ≥50 cm
PenetrationSoftening pointDuctilityFlash pointViscosityWeight loss

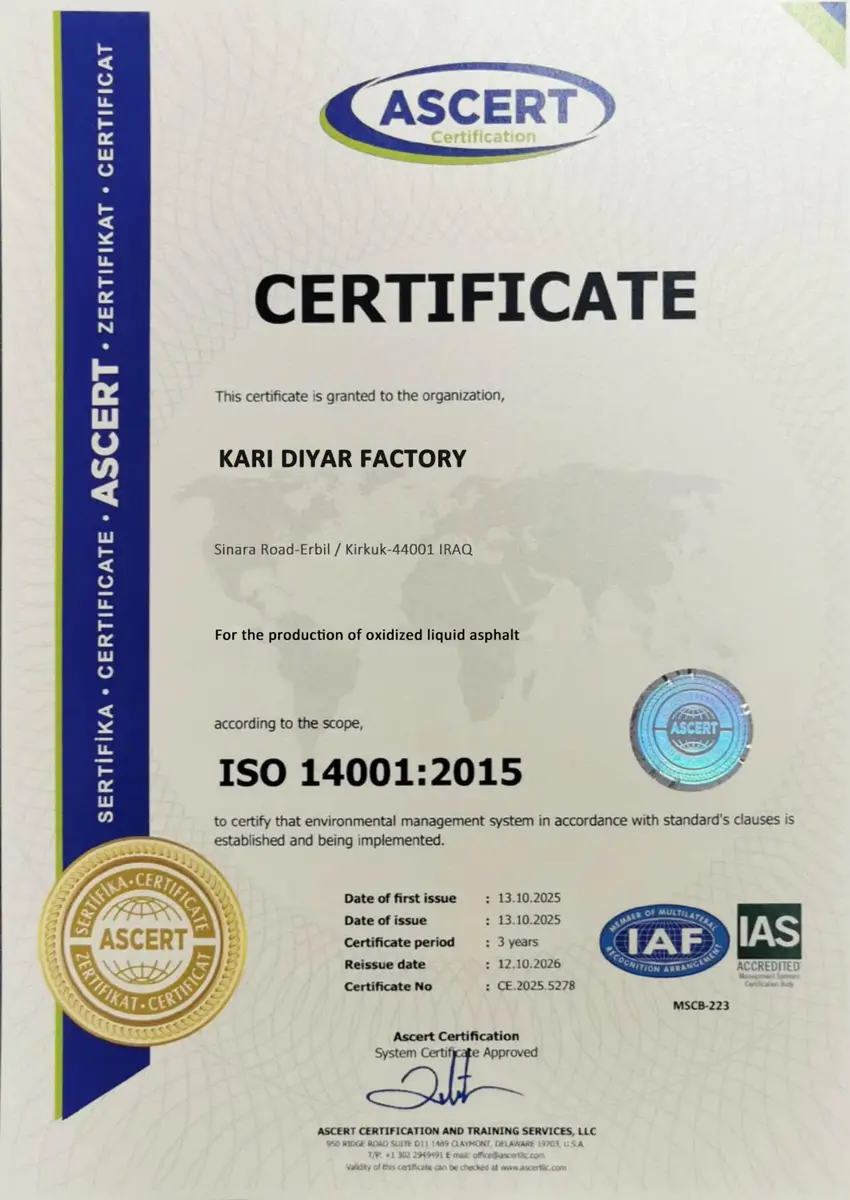

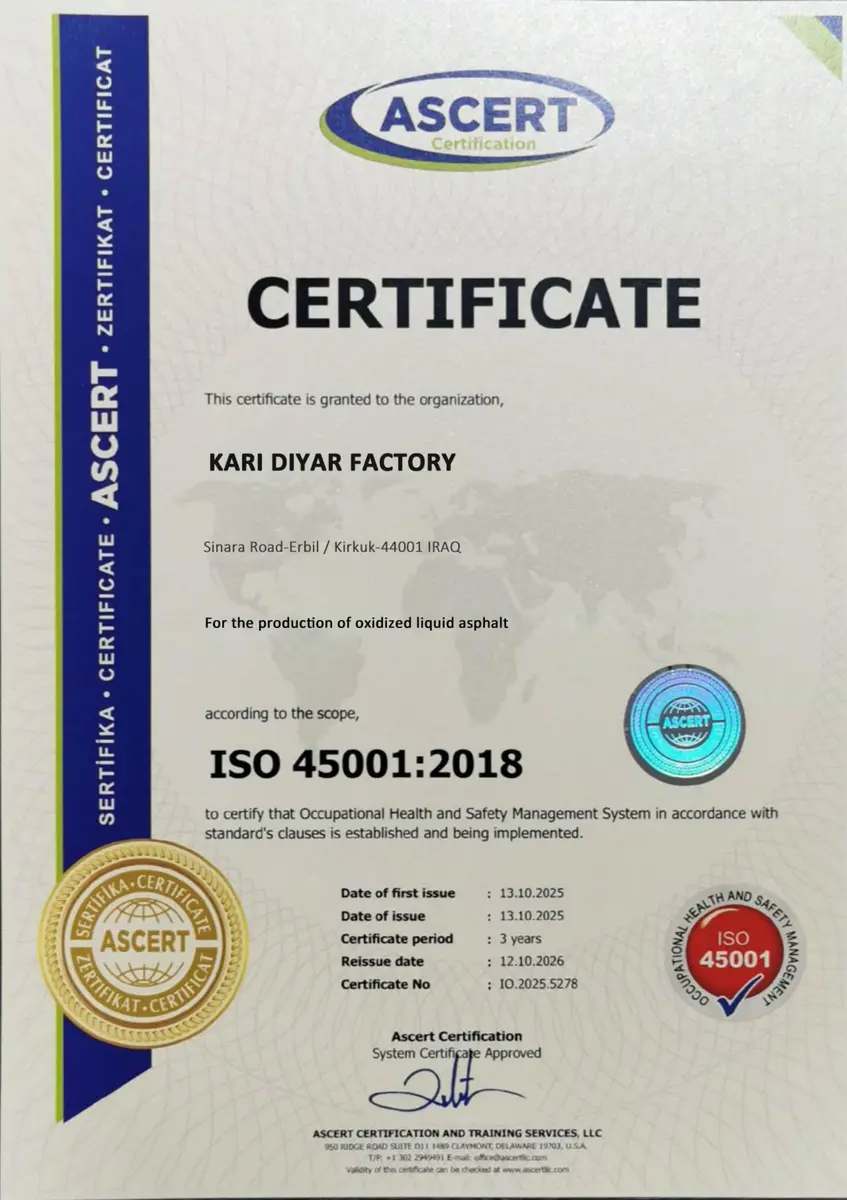

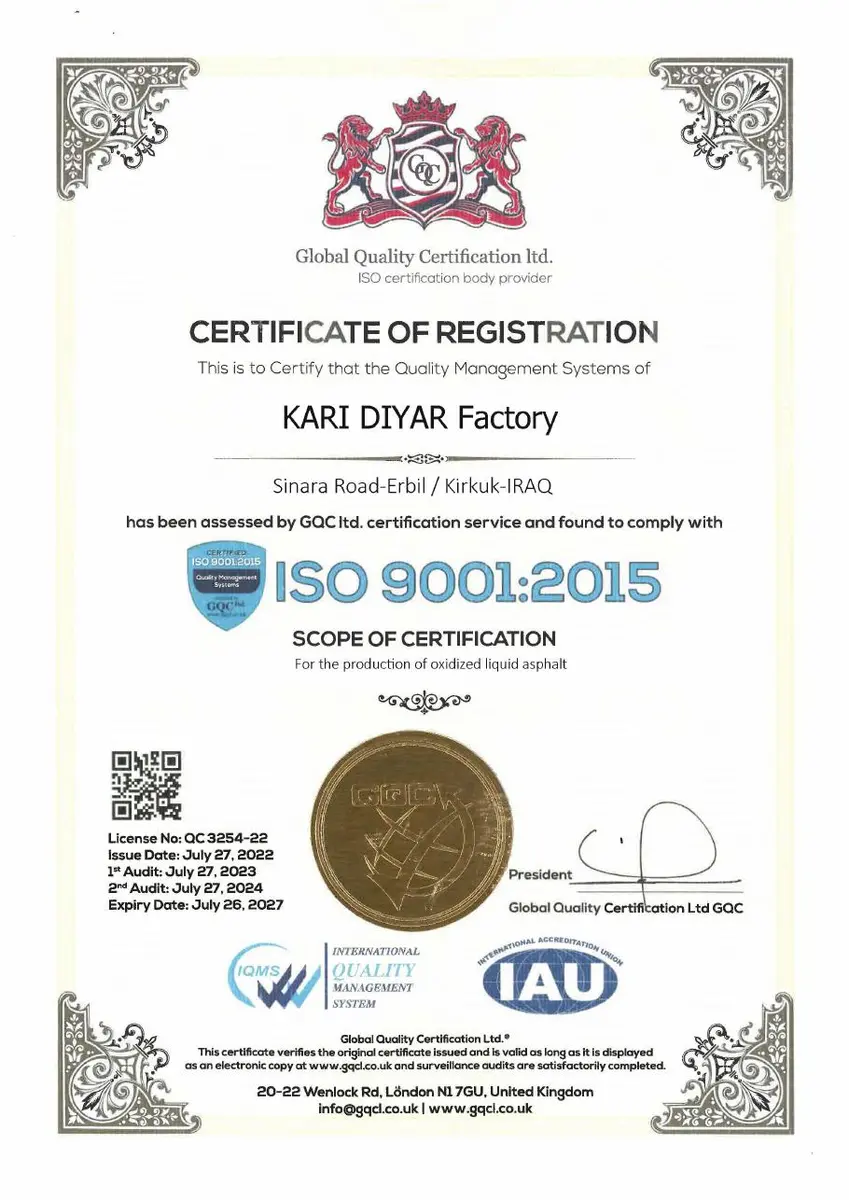

Management systems
Certified standards. Visible commitment.
Quality, environmental and occupational safety systems support consistent production and responsible operations.
Safe handling
Temperature, control and training.
Our minimum controls cover storage, heating, transport, loading and unloading of drum and hot-bulk bitumen. Product-specific SDS requirements remain essential for every shipment.
Storage controls
Identified tanks or sealed drums, temperature monitoring, reliable level gauging, ventilation and spill containment.
Water prevention
Tanks, hoses and vehicles must be completely dry before hot bitumen is introduced to prevent boil-over.
Loading & transport
Trained teams, compatible equipment, safe exclusion zones, secure connections and continuous transfer monitoring.
Emergency readiness
H₂S monitoring, eyewash and shower access, suitable fire systems, drain protection and clear response procedures.
Hot bitumen burn: cool immediately with clean running water for at least 20 minutes. Do not use ice or remove adhered bitumen.
Start a conversation
Tell us the grade, volume and destination.
Our commercial team will confirm specification, packing, quality documentation and delivery options for your requirement.
PLANT & HEAD OFFICEErbil-Kirkuk Road, Qushtapa / 31KM Senara, Iraq
BUSINESS HOURSSaturday - Thursday · 9:00 AM - 6:00 PM
